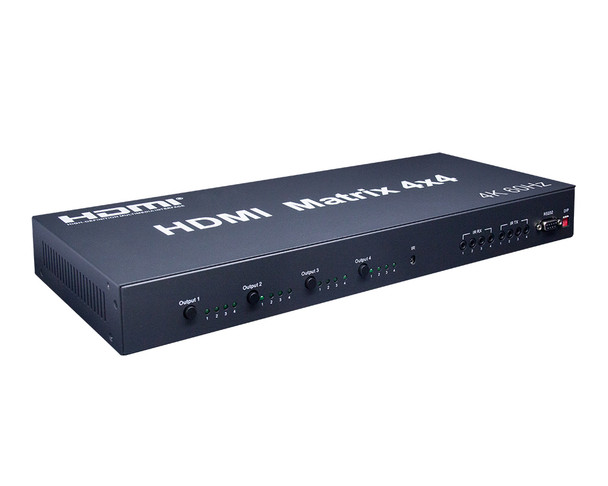

Product Overview
The 2.0 HDMI Matrix 4x4 can connect four HDMI signal sources with the four displays at the same time. It can easily and freely split or switch four hdmi signals on four displays or projectors which compatible with hdmi signal. Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control.
HDMI matrix 4x4 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss. This HDMI matrix offers solutions for digital entertainment center, HDTV, retail and show site. HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
- Support HDMI 2.0, HDCP 2.2
- Support 3D
- Support high definition resolutions 4K/60Hz, 1080p, 1080i, 720p and other standard video formats
- Support audio format DTS-HD/Dolby-trueHD/LPCMD/DTS/DOLBY-AC3/DSD
- Support IR Remote Control
- Support RS232
- The four outputs could show the same or different source simultaneously
- Support 4K (input) resolution 2K (output) (Downscaling)
Specifications:
HDMI version ........................................................................ HDMI 2.0/HDCP 2.0 HDMI
resolution .............................................................................. up to 4K/60Hz
Support video format ............................................................... 8/10/12 bit deep color
Support audio format .................... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max baud rate ......................................................................... 18Gbps
Input cable distance .................................................................. less than 10m AWG24
Output cable distance ................................................................ less than 10m AWG24
HDMI Input ............................................................................................ 4
HDMI Output .......................................................................................... 4
Max working current ................................................................................ 1.6A
Power adapter format ................. Input:AC(50Hz, 60Hz) 100V-240V; Output:DC12V/2A
Operating Temperature range ................................................................. (-15 to +45°C)
Operating Humidity range ........................................... 5 to 90%RH (No Condensation)
Dimension (L x W x H) ........................................................... 435 x 184 x 46(mm)
Weight ...................................................................................... 1890g
