Product Overview
Description:

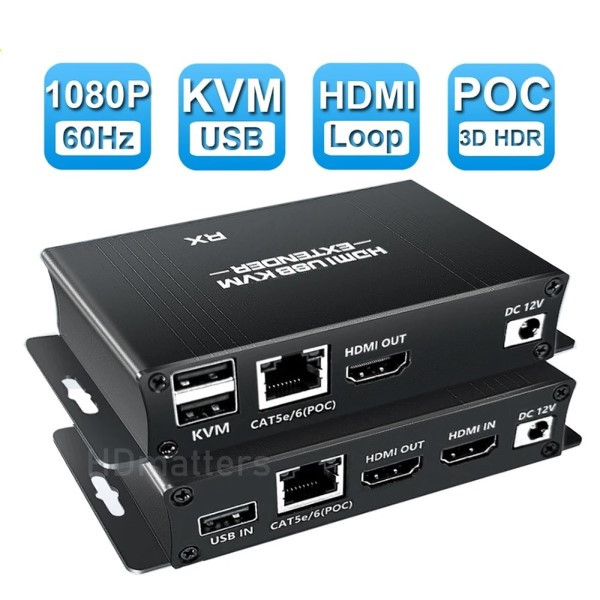

This HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
• Long range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;
• Video resolution: Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
• Audio format: LPCM2/5.1/7.1,Dolby Digital, DTS 5.1,Dolby Digital+ ;
• POC function: Power over CAT cable, only need one power adapter;
• HDMI loop out function: The transmitter with one HDMI local loop out;
• Uncompressed mode: ZERO Delay, No loss;
• KVM Remote Control: keyboard and mouse remote control transmitter from long distance;
• Male to male: one TX to one RX application;
• Video standard: compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
• Built-in automatic adjustment system: make the image smooth, clear and stable;
• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play
• Simple to install, plug and play
Specifications:
Video
Standards----------HDMI 1.4b; HDCP 1.4 and DVI compliant
Maximum pixel clock------300MHz
Maximum data rate-------10.2Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω
USB
Interface-------PC: Type A USB interface; connect to pc;
KVM: connect wired or wireless USB keyboard and mouse
USB signal----------HID Signal
CAT
Interface-----RJ45/IEEE-568B
Transmission distance--------CAT5: 40m/131ft, CAT5e: 50m/164ft, CAT6: 60m/196ft
Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------TX:1.92W,RX:1.68W(Max)
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------118*50*25mm
Note:
1.the KVM USB port only support wired or wireless keyboard and mouse, not support Mechanical keyboard， USB Camera, Scanner, USB flash driver , printer etc.
2.For CAT cable, please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
Package:
HDMI KVM extender transmitter ……………………1 pcs
HDMI KVM extender receiver ……………………… 1 pcs
Power adapter ………………………………....1pcs
User manual …………………………………..1 pcs
