Product Overview
Product features

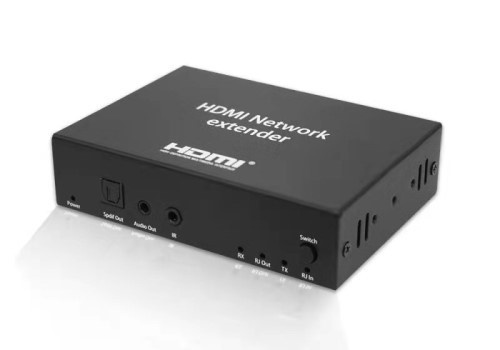

The integrated cable extender replaces the HDMI cable with a CAT5e or CAT6 that extends the HDMI1080P signal by 100 meters. The goal is to deliver the signal over long distances with low-cost wires. With 100M long distance transmission, multi-receive cascade transmission. This product has low power consumption, low temperature and high safety. It also supports audio extraction.
Video
HDMI and HDCP: HDMI1.4 ; HDCP1.4
Bandwidth: 9.95Gpbs
Maximum resolution: 3840x2160@30Hz
Interface: HDMI-A Interface
Cascade: 10 units
IR control
Interface: 3.5mm socket
Signal direction: Two-way transmission
Signal types: digital signals
Frequency: 20 - 60 Khz
Audio
3.5 left and right audio channels: Stereo 2.0
Stereo support: 2.0 Analog stereo of sound channel
Support compressed audio: DTS Digital, Dolby Digital, DTS-HD Dolby TrueHD
Other
Power adaptor: DC12V - 24V
Max power: Receiver 9W/ Transmitter 9W
Working temperature: -5° C ~ +70° C
Working humidity: 5% ~ 90%
size: 112*79*28mm
